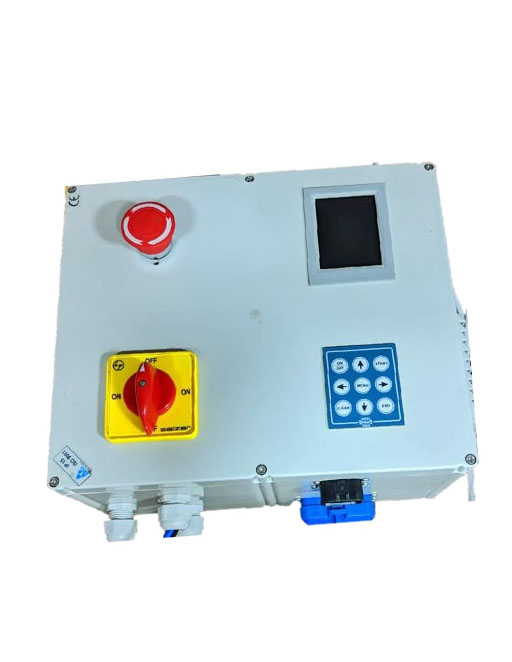

Special Purpose Machine Controller
KEY FEATURES

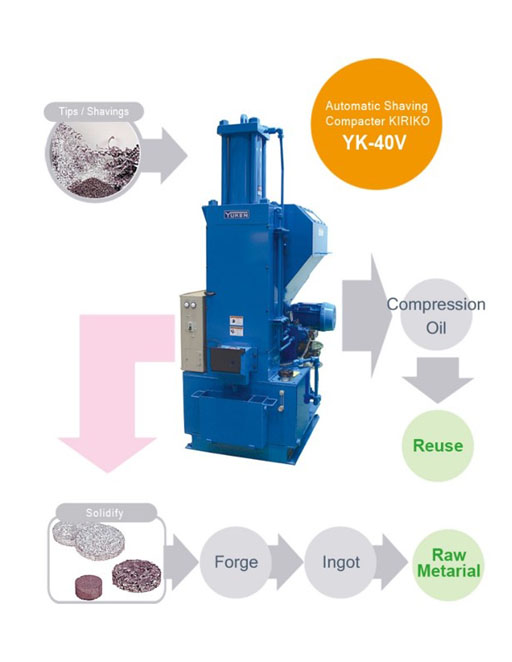

- Tech Rizes developed a Special purpose Controller to manage the operation of Compact Kiriko, a machine designed and manufactured by Yuken, India, to compress waste metal shavings.
- Scraps and shavings are compressed and solidified to up to 1/40th of their original volume by hydraulic power; optimal for environmental conservation and recycling by this machine.
- The Controller consists of 13 Digital output, 13 Digital Input, 1 Analog output. Also includes SSR based overload protection for motor. And can be programmed to operate other Special Purpose Machines.
DETAILED SPECIFICATIONS
- Operates from 12-30V DC power
- Monitors and controls the 3-Phase Motor, Cooler
- Easy user interface via LCD display and keypad
- Safe operation – Emergency switch, Audio-Visual alerts
- Overload protection module with trip Class < Trip 5
Field Programmable
- Sequence of solenoid valves operation
- On / Off duration of solenoid valves
Protection Settings Customizable
- Trip current at motor Start
- Trip current at motor normal operation
- Auto restart, Auto restart tolerance
